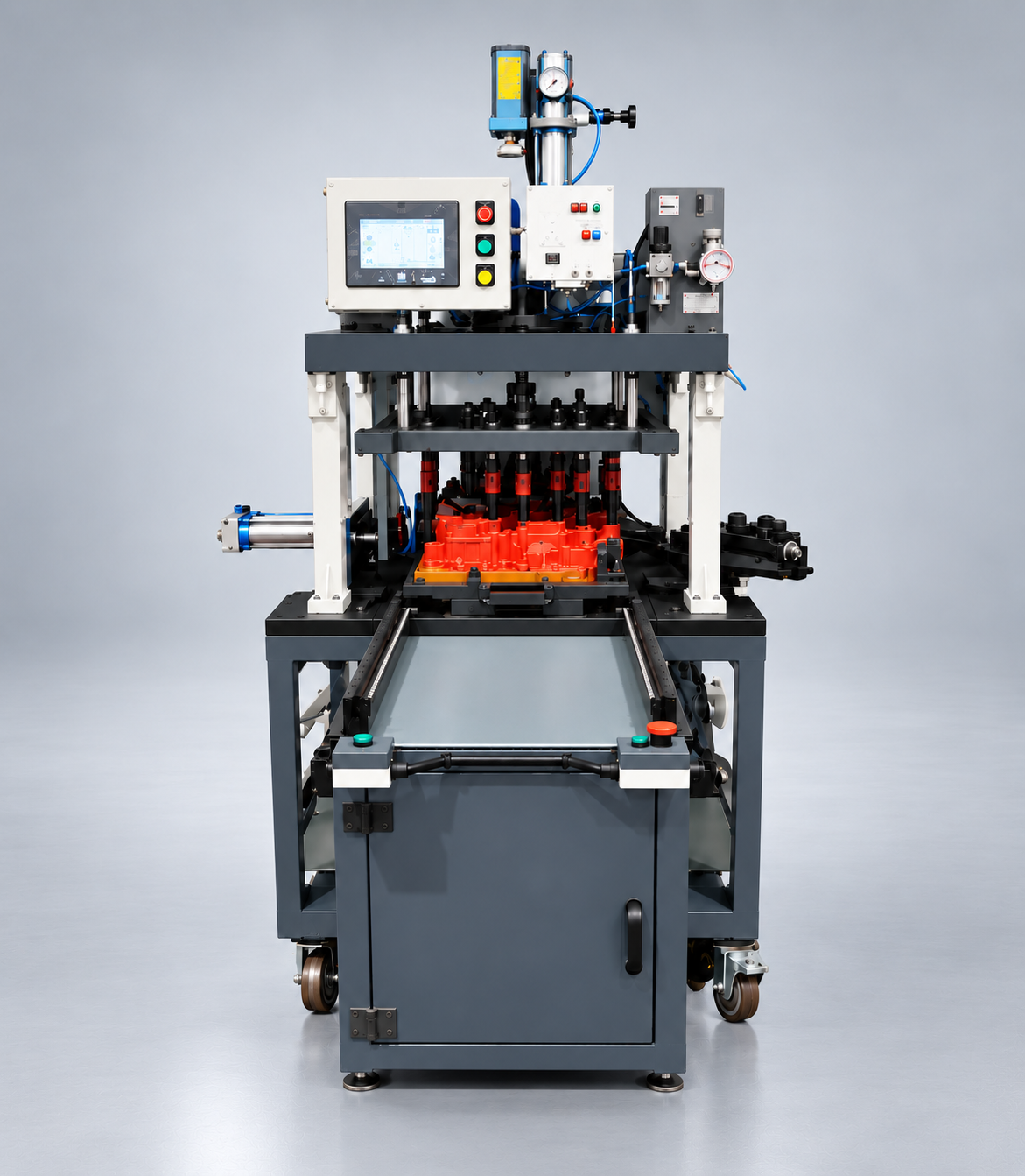

Accurate testing, reliable leak detection and efficient automation. The T.G. Case Leakage Testing Machine is designed to perform precise and reliable leak testing of T.G. cases using pneumatic pressure, ensuring consistent quality, fast testing and dependable results for production applications.
The T.G. Case Leakage Testing Machine is designed for accurate and reliable leakage testing of T.G. cases. This dry-type leakage testing machine uses controlled pneumatic pressure to detect leakage and verify the sealing integrity of components during production.
The machine supports dual-pressure testing for water gallery and whole-body leakage inspection, with Mitsubishi PLC-based control and a 7-inch touch HMI for easy operation, monitoring and data accuracy. OK/NG indication with lamps and buzzer provides clear test results for efficient quality control.
Dry type leakage testing
Cosmo Japan make leakage testing instrument
Dual pressure testing system
Water gallery test at 3 Bar pressure
Whole body test at 0.5 Bar pressure
Mitsubishi PLC with 7-inch HMI control panel
Accurate and repeatable test results
Pneumatic clamping system
Compact and robust machine construction
Easy loading and unloading of components
Manual Loading
T.G. case is manually loaded and positioned on the testing fixture.
Pneumatic Clamping
Pneumatic clamping securely holds the component in the correct testing position.
Test Type Selection
The required test type and pressure are selected through the HMI.
Water Gallery Leak Test
The water gallery is tested at 3 Bar pressure to detect leakage.
Whole Body Leak Test
The complete body of the component is tested at 0.5 Bar pressure.
Leak Detection
The testing instrument detects leakage and displays the test result on the HMI.
OK / NG Indication
Test results are clearly indicated through OK/NG status, lamps and buzzer.
Manual Unloading
After successful test completion, the tested component is manually unloaded.
T.G. Case Leakage Testing
Water Gallery Leak Testing
Whole Body Leak Testing
Automotive Component Testing
Production Line Leakage Testing
