§ MACHINE CATALOG

VOL. 01REV. 2026

Built to clean.Engineered to last.

21+ industrial cleaning and washing machines across 3 sectors. Standard configurations or ground-up custom builds — engineered around your line.

SS304 BUILD
PLC CONTROL
PUNE · IN

MACHINES

INDUSTRIES

SS304 BUILD

100%

§ 02 — Index

Filter by industry.

21 / 21 · FILTERED: ALL

END OF INDEX · PAGE 01 / 01NEXON CATALOG · 2026

§ Also serving

Automotive
Pharmaceutical
Railway & Metro
Food & Beverage
Steel Industry
Coal & Mining
Defense
Aerospace

§ Build To Order

Don't see your
machine?

Send specs, drawings, or a sample part. We engineer to your line — fixturing, controls, footprint, throughput. SS304 by default.

QUOTE ≤ 5 DAYSFOB PUNE

FORM A · CUSTOMSHEET 01 / 01

What we cover.

01Site survey & line audit
02Custom fixture engineering
03PLC + retrofit integration
04AMC & spares program

Submit Brief→or call +91 89561 67250

Loading Type	Front Loading
Cycle Time	~20 seconds
Wash Capacity	1440 bins per shift
Max Temperature	60–65°C
Washing Type	Hot Water Detergent Spray Wash
Material	Stainless Steel (SUS 304) & Mild Steel (MS)

Loading Type	Front Loading, Continuous Conveyor
Cycle Time	Customizable based on conveyor speed
Max Temperature	60–70°C
Washing Type	Hot Water Detergent Spray Wash
Material	Stainless Steel (SUS 304) & Mild Steel (MS)

Loading Type	Front Loading (Manual or Automatic)
Cycle Time	Customizable
Capacity	Small to medium-sized components
Max Temperature	60–70°C
Washing Type	High-Pressure Hot Water Detergent Spray
Material	Stainless Steel (SUS 304) & Mild Steel (MS)

Loading Type	Manual or Automatic
Cycle Time	Adjustable based on part size
Capacity	Small to medium-sized components
Max Temperature	60–70°C
Washing Type	High-Pressure Hot Water Spray with Detergent
Material	Stainless Steel (SUS 304) & Mild Steel (MS)

Drum Size	Standard 220-liter drums (Plastic, MS, PVC)
Cycle Time	~2.5 minutes (settable)
Alkaline Wash	1.5 minutes
Hot Water Rinse	1 minute
Water Temperature	55–60°C
Pressure	6 to 8 bar
Material	Stainless Steel 304

Built to clean.Engineered to last.

Filter by industry.

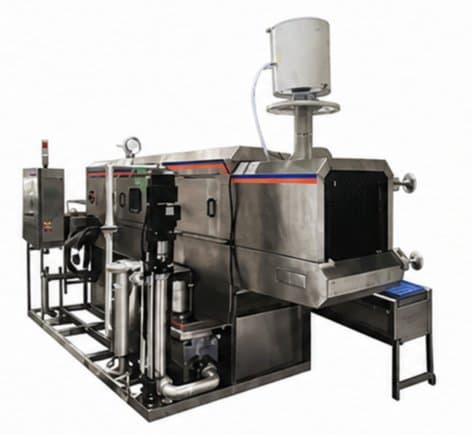

Crate / Bin / Tray Cleaning Machine

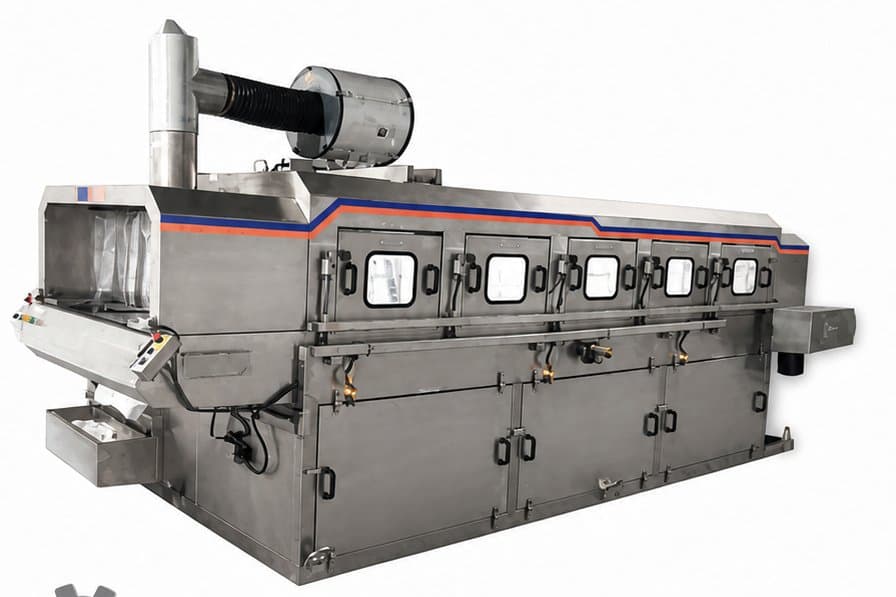

Conveyor-Type Component Washing Machine

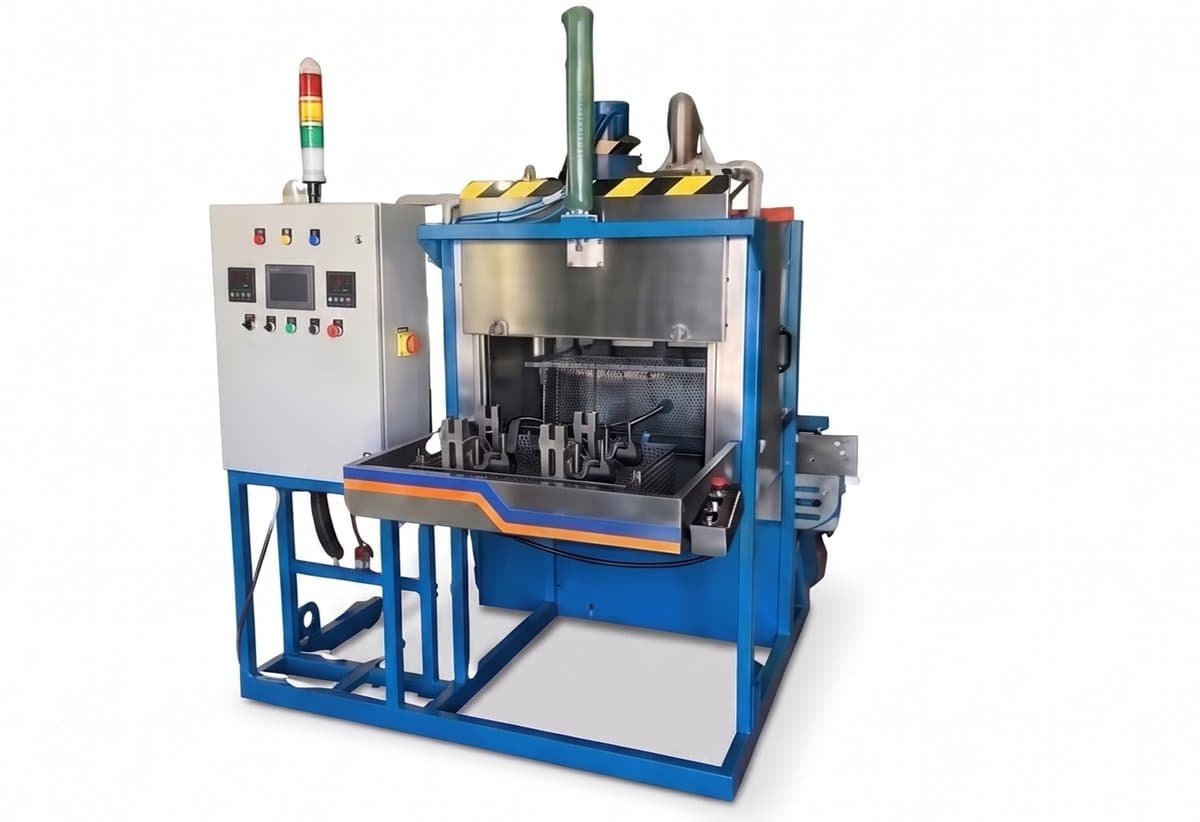

Cabinet-Type Component Cleaning Machine

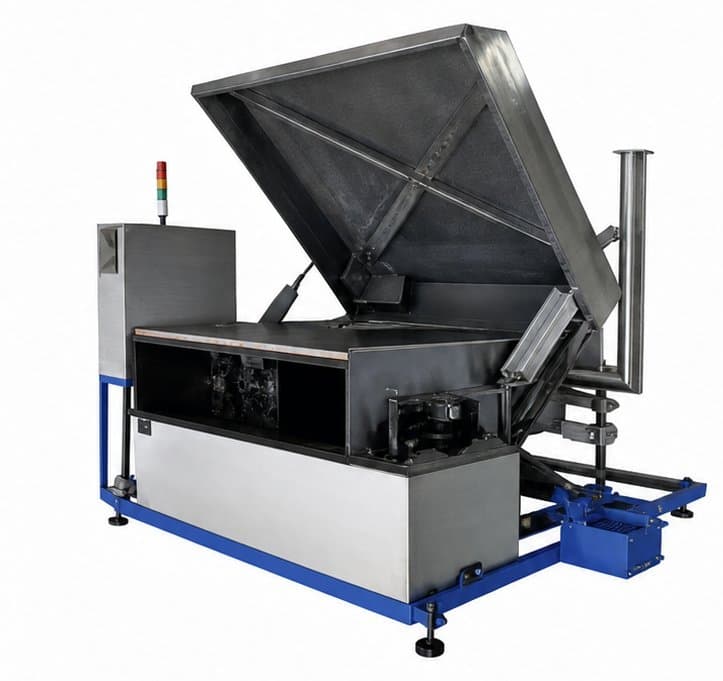

Rotary-Type Part Washing Machine

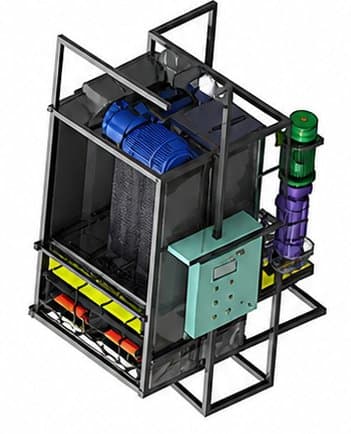

Plastic Drum Washing Machine

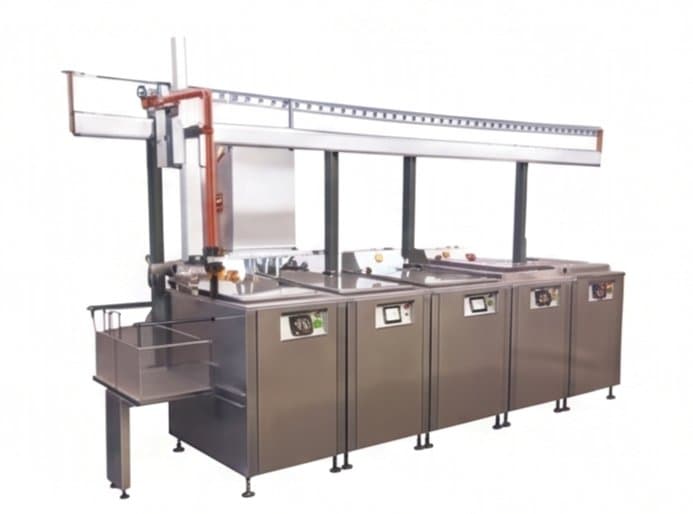

Ultrasonic Component Washing Machine

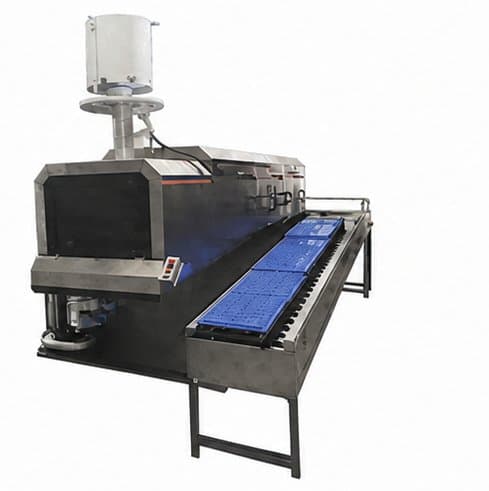

Rotary Drum Type Bin/Crate Washing Machine

Conveyor-Type Alloy Wheel Washing Machine

Conveyorized Battery Washing & Drying Machine

Robotic Component Washing Machine

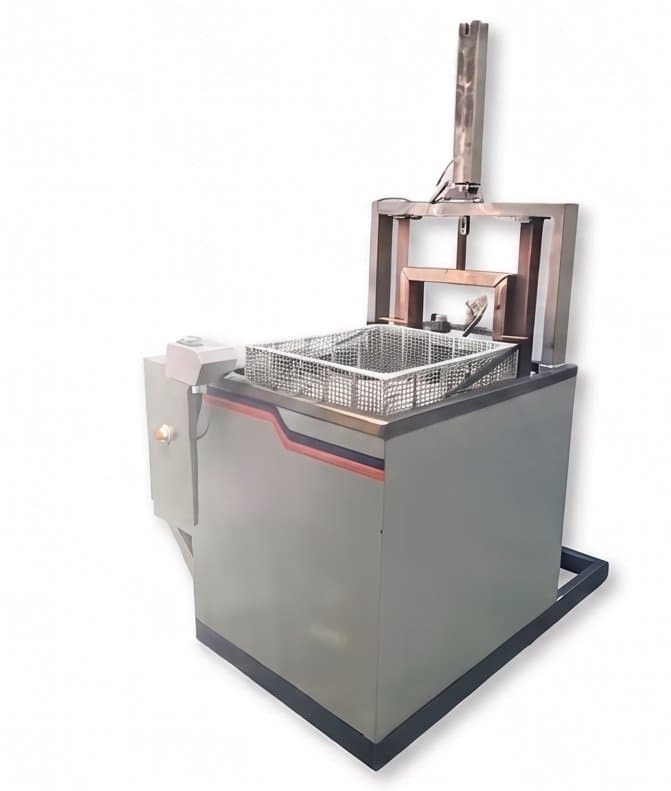

Rust Preventive Oil Dunking Machine

Single Chamber Multiprocess Cleaning Machine

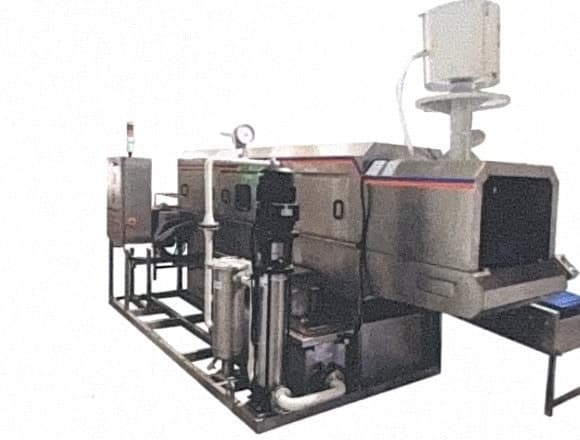

Rotary Type Bin Cleaning Machine

Fastener Cleaning Machine

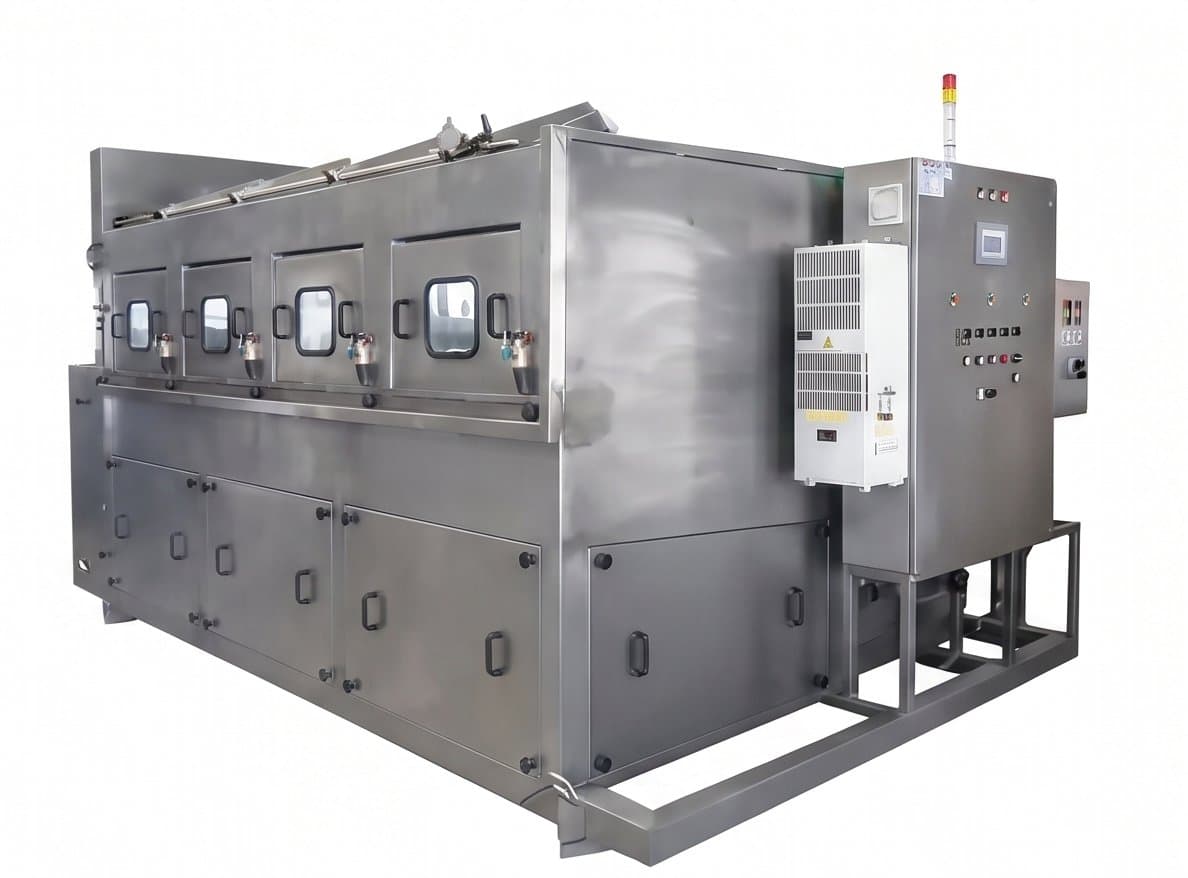

AHU Filter Cleaning Machine

Automatic Train Wash Plant

Axle Washing & Drying Machine

Bogie Washing Plant

Bearing Cleaning Plant

Wheel Disc Washing Plant

Traction Motor Cleaning & Vacuum Drying Station

Don't see your
machine?

What we cover.

Ultrasonic Frequency	33 ± 3 KHz
Tank Capacity	1400 liters (1200 x 600 x 600 mm)
Conveyor Speed	500–20,000 mm/min (avg 1,000 mm/min)
Loading Height	1000 mm from ground
Material	SS 304 tank & wetted parts, MS outer structure

Basket Size	800 mm diameter
Max Bin Size	600 x 400 x 300 mm (LWH)
Rotation Speed	6-8 RPM
Cycle Time	2 minutes per cycle
Production Rate	120 bins/hour
Pump Power	5 HP, 160-300 LPM at 4-5 kg/cm²
Tank Capacity	300 liters with 12.5 kW heater

Wheel Size	Customized per requirement
Conveyor Speed	Adjustable up to 1600 mm/min (VFD controlled)
Drying Temperature	90–120°C
Material	SS 304 wetted parts, MS outer frame with PU coating

Battery Dimensions	Customized
Conveyor Speed	Adjustable — up to 100 batteries/hour
Fresh Water	20-30 liters/hour at 1-2 bar
Compressed Air	5-6 bar
Control	Mitsubishi FX Series PLC
Material	SS 304L wetted parts, MS with PU finish

Component Dimensions	Per customer requirement
Cycle Time	2 minutes per component
Spray Washing	2 minutes
Hot Air Blow	2 minutes
Chamber	SS304, 2mm thick, fully welded
Control	Mitsubishi FX-series PLC

Fixture Dimensions	Customized
Cycle Time	4 minutes (settable)
Wash Temperature	65°C
Drying Temperature	Up to 100°C
Control	Mitsubishi GOC PLC

Component Size	All size plastic bins/crates
Washing Time	120 seconds (settable)
Air Blow Drying	30 seconds (settable)
Filtration	150µ bag filter, 50µ inline filter
Oil Skimmer	Belt type, 5-8 liters/hour

Fastener Size	All diameters
Production Capacity	500–1000 kg/hour
Conveyor Output	4-5 RPM (VFD adjustable)
Loading Height	1000 mm from ground
Wash Temperature	50–60°C
Alkaline Concentration	4-6%

Filter Capacity	Up to 8 small filters (305x305x50mm) or customized
Max Load Weight	80–150 kg (including fixture)
De-dusting	2 minutes
Spray Washing	3 minutes
Water Removal	2 minutes (rotation)
Air Blow Drying	4 minutes
Material	Stainless Steel (SUS 304)

Pre-wetting	300 L/min (recycled water)
Detergent Station	80 L/min
First Brushing	180 L/min (recycled)
Second Brushing	200 L/min (fresh water)
First Rinsing	300 L/min (softened water)
Final Rinsing	100 L/min (RO water)
Air Blowers	4.5 m³ at 0.8 bar
Control	Fully automated PLC with local/depot control

Washing Pressure	8-10 bar (optional up to 140 bar)
Energy Sources	Electric, gas, petrol, steam, or hot water
Tank System	Dual — wash solution + rinse water
Control	PLC with remote and on-site management
Automation	Motorized doors, automatic shifting

Turntable Diameter	800–1200 mm
Working Height	900 mm
Turntable Capacity	400–1600 kg (max)
Individual Bearing Weight	8–60 kg
Max Table Diameter	1600 mm
Material	Stainless Steel (SS 304)

Productivity	Up to 40 wheel discs per 8-hour shift
Process	Spray washing + fresh water rinsing
Material	Stainless Steel (SS 304)
Construction	Insulated cabinet and tanks
Heating	Electric, steam, gas, or hot water options

Cleaning Solution	Hot aqueous with 2-5% detergent
Wash Process	Three-stage fully recirculating
Drying	Low-energy vacuum drying system
Coverage	Interior and exterior of traction motors
