Rotary Drum Type Bin/Crate Washing Machine

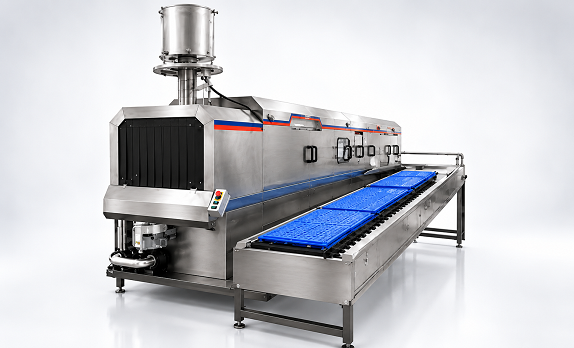

NEXON BM-500 High Performance Bin Machine
Full Machine
Component Image 1
[ A-07 ] AUTOMOTIVE

Rotary Drum Type Bin/Crate Washing Machine

High-performance rotary drum system for efficient cleaning and drying of plastic bins and crates. Rotary motion combined with high-pressure spray ensures 360-degree cleaning.

§01 Specifications
Basket Size 800 mm diameter

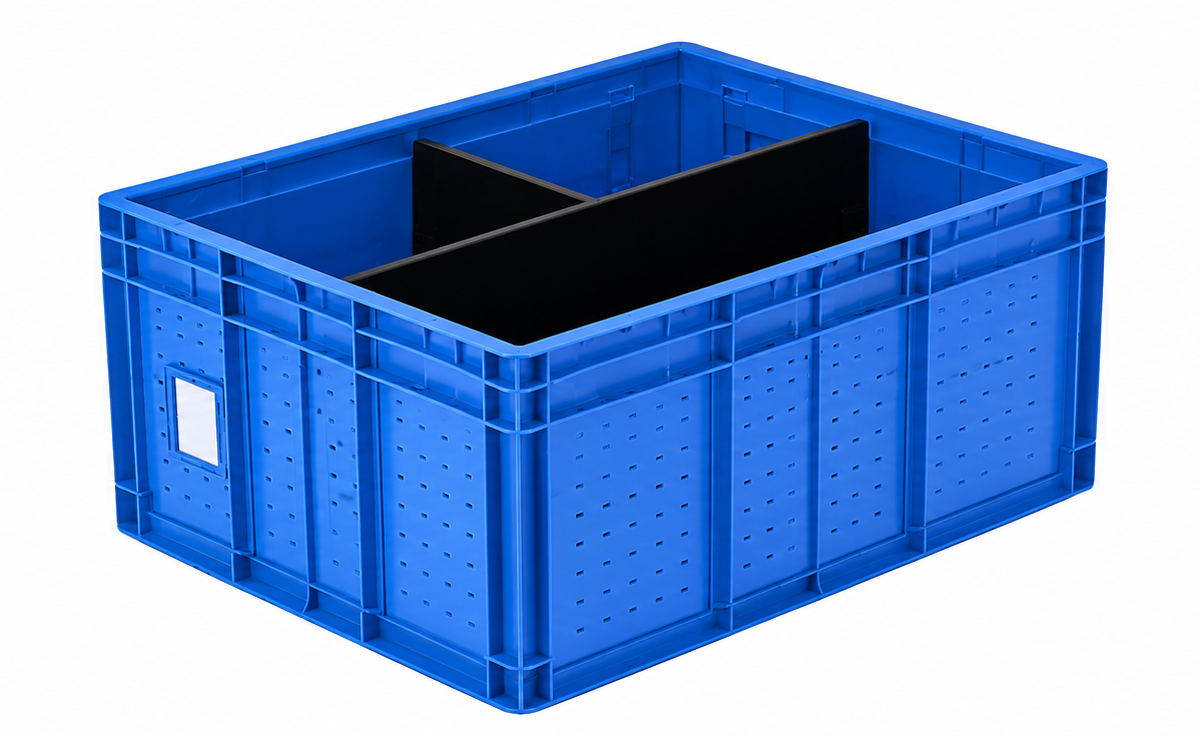

Max Bin Size 600 × 400 × 300 mm (LWH)
Rotation Speed 6–8 RPM
Cycle Time 2 minutes per cycle
Production Rate 120 bins/hour
Pump Power 5 HP, 160–380 LPM at 4–5 kg/cm²
Tank Capacity 300 liters with 12.5 kW heater
§02 Overview

High-performance rotary drum system designed for efficient cleaning and drying of plastic bins and crates. Rotary motion combined with high-pressure sprays ensures thorough 360-degree cleaning.

§03 Key Features
01

Rotary drum at 6–8 RPM for 360° cleaning

02

High-pressure SS spray nozzles

03

Pneumatic canopy for sealed environment

04

Alkaline wash with hot water (60–65°C)

05

Air blow drying with air knives

06

Multi-stage filtration system

07

SS304 construction for wetted parts
