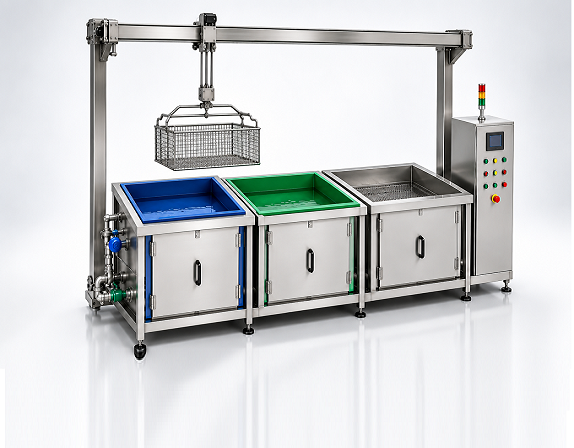

Dipping type ultrasonic cleaning system designed for deep cleaning of components using ultrasonic cleaning, rinse washing and hot air drying. The machine is equipped with a basket arrangement for handling up to 200 vertical pipes.
Dipping type ultrasonic cleaning machine designed for deep cleaning of components through ultrasonic cleaning, rinse washing and hot air drying. The system uses a basket arrangement with a capacity of 200 vertical pipes and provides consistent cleaning and moisture removal through controlled cleaning stages.
Ultrasonic cleaning for deep cleaning
Separate rinse tank for chemical removal
Hot air drying for complete moisture removal
SS 304 construction for long life
Digital temperature control
Timer based automatic operation
Monorail crane for smooth transfer
Basket lifting arrangement
Loading Basket
Components are loaded into the basket for the cleaning process.
Ultrasonic Cleaning
Components undergo ultrasonic cleaning using hot water and
chemical solution for approximately 03 minutes at 50–60°C
and 28–40 kHz.
Rinse Wash
Fresh water or DM water is used to rinse the components
and remove remaining cleaning solution for approximately
01–02 minutes.
Drying
Hot air drying removes moisture from the components using
hot air at approximately 80–100°C for 02–03 minutes.
Unloading Basket
The cleaned and dried components are transferred out of
the machine for further handling or processing.
